Name: D1 Mini Nodemcu Lua Expansion Board Support OTA Launch Internet Development Board for Arduino Compatible for WeMos D1 Mini
SKU: 3256809697783530
Availability: InStock

Description

Hign-concerned Chemical: None
Package: SOP
Type: Module
Brand Name: Shunmaii
Origin: Mainland China
Condition: New
Name: NodeMcu Lua WIFI Development Board
Interface: Micro, Type-c (optional)

D1 Mini Nodemcu Lua WIFI Expansion Board Support OTA Launch Internet Development Board for Arduino Compatible with WeMos D1 Mini
Feature:
1. Introduction: The WiFi Development Board is D1 mini, which is a mini NodeMcu Lua WiFi board based on ESP-8266EX.
2. Compatible with WeMos D1 Mini: The D1 Mini NodeMcu Lua 4M byte WLAN WiFi Internet WiFi Development Board is based on the ESP8266 ESP-12F for Arduino and is compatible with WeMos D1 Mini. It can be programmed in an Arduino IDE compatible environment.
3. 11 Digital Input/Output Pins: The Expansion Board has 11 digital input/output pins, all of which have interrupts/PWM/I2C/support for 1 wire (excluding D0); 1 analog input (maximum 3.2V input). Micro USB connection; Compatible with Arduino; 1MB flash memory; 500mA resettable fuse.
4. Switching Power Supply: The Internet Development Board has a 4M byte. 5V 1A switching power supply (switching power supply) onboard.
5. 2 Options: The WiFi Development Board has Micro and Type-C2 options for you to choose from.

Specification:
Origin: Mainland China
Product features:
1. Based on ESP-8266EX
2. rduino compatibility, programming using the rduino IDE
3.11 XI/O pin
4.1XADC pin (input 0-3.3V)
5. Support OTA launch
6. Onboard 5V 1A switching power supply (maximum input 24V)
Name: NodeMcu Lua WIFI Development Board
Interface: Micro, Type-c (optional)
Product size: 35 * 25 * 7mm/1.3*0.9*0.2in

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

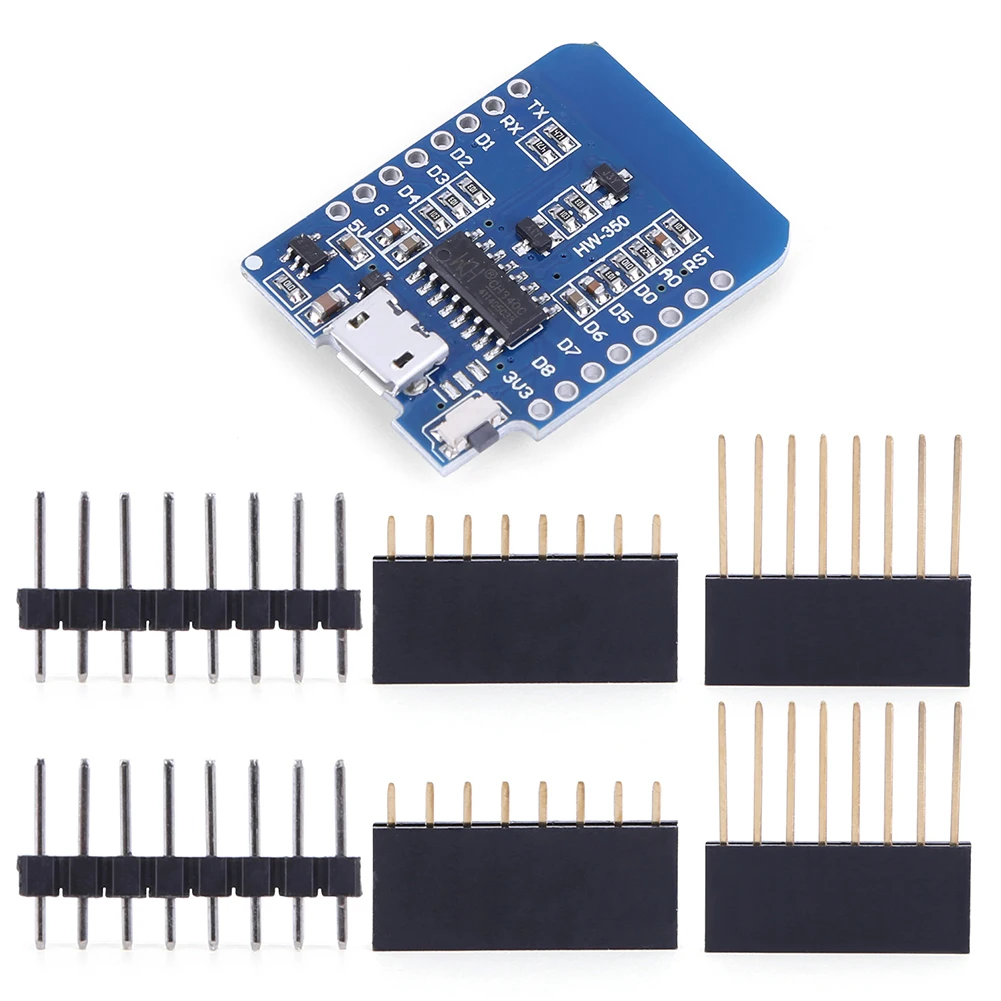

2pcs x Long Busbar
2pcs x Short Busbar
2 x Ordinary Needle Arrangement
1 x D1 MINI Development Board
